ACTIVE
Part Number
UM3730
Description
150mA, Micropower, Low Dropout Linear Regulator with Enable
Status
ACTIVE
Output Options
Fixed
Iout(Max) (mA)
150
Vin(Min) (V)
2.5
Vin(Max) (V)
5.5
Vout (Min) (V)
1
Vout (Max) (V)
3.3
Fixed output options (V)
1.0 to 3.3 with 0.1 Interval
Iq (uA)
29
Vdropout (mV)
155
PSRR@1kHz (dB)
45
Enable Control
Yes
Auto-Discharge
No
Operating Temperature Range (℃)
-40 to 85
Package
SOT353, DFN4 1.0x1.0

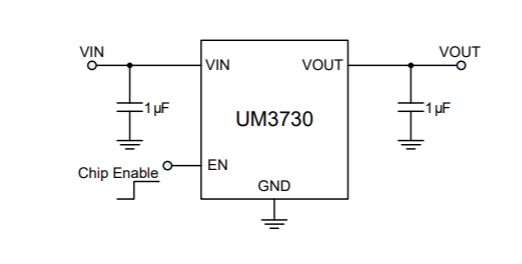

The UM3730 series are low dropout linear regulators designed for low power portable applications. Typical output noise is only 220μVRMS and typical dropout voltage is 155mV at the load current of 150mA. Ideal for battery powered applications, the UM3730 draws only 29μA current during no load operation. The UM3730 includes an auto-discharge feature that is activated when the enable pin is low.
Other features include 2% output voltage accuracy, excellent transient response, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting.
- Input Voltage Range: 2.5V to 5.5V
- Guaranteed 150mA Output Current
- ±2% Voltage Accuracy at 150mA
- Low Dropout Voltage: 155mV (Typical) at 150mA
- Low Quiescent Current: 29μA (Typical)
- Low Noise: 220μVRMS (10Hz to 100kHz)
- Available Fixed Output Voltage from 1.0V to 3.3V with 0.1V Step
- Output Current Limit
- Thermal Overload Protection
- Stable with 1μF Output Capacitor
- Low Profile DFN4 1.0×1.0 and SOT353 Packages
- Digital Camera/p>
- PDAs and Notebook Computers
- Portable Instruments and Battery-Powered Systems
- Cellular Phones
| Part Number | Packaging Type | Marking Code | Shipping Qty |
|---|---|---|---|
| UM3730DA-xx | DFN4 1.0×1.0 | XX | 10000pcs/7Inch Tape & Reel |
| UM3730P-xx | SOT353 | UXX | 3000pcs/7Inch Tape & Reel |
