ACTIVE
Part Number
UM1660
Description
28V Boost LED Driver with PWM dimming
Status
ACTIVE
Channnels
1
Topology
Sync Boost
Dimming Mode
PWM
Iout(Max) (A)
0.4
Vin(Min) (V)
2
Vin(Max) (V)
6
Vout (Min) (V)
2
Vout (Max) (V)
28
Type
Inductive
Switching Frequency (MHz)
1
Max Efficiency(%)
88
Operating Temperature Range (℃)
-40 to 85
Package
SOT23-5, DFN6L 2.0x2.0
The UM1660 is a PFM controlled step-up DC-DC converter with a switching frequency up to 1MHz. The device is ideal to generate output voltage for small to medium LCD bias supplies and white LED backlight supplies from a single cell Li-Ion battery. The part can also be used to generate standard 3.3V/5V to 12V power conversions.
With a high switching frequency of 1MHz, a low profile and small board area solution can be achieved using a chip coil and an ultra small ceramic output capacitor. The UM1660 has an internal 400mA switch current limit, offering lower output voltage ripple. The low quiescent current (typically 36礎) together with an optimized control scheme, allows device operation at very high efficiencies over the entire load current range.
- 2.0V to 6.0V Input Voltage Range
- Adjustable Output Voltage up to 28V
- 400mA Internal Switch Current
- Up to 1MHz Switching Frequency
- 36礎 Typical No Load Quiescent Current
- 1礎 Maximum Shutdown Current
- Internal Soft-Start
- Available in Tiny SOT23-5 and DFN6L 2.0×2.0 Packages
- LCD Bias Supply
- White LED Supply for LCD Backlights
- Digital Still Camera
- PDAs, Organizers and Handheld PCs
- Cellular Phones
- Standard 3.3V/5V to 12V Conversion

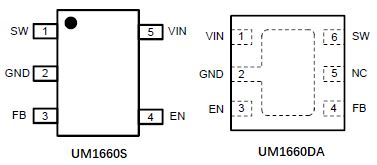

| Part Number | Packaging Type | Marking Code | Shipping Qty |
|---|---|---|---|
| UM1660S | SOT23-5 | PHO | 3000pcs/7Inch Tape & Reel |
| UM1660DA | DFN6L 2.0×2.0 | AAG | 3000pcs/7Inch Tape & Reel |
