ACTIVE
Part Number
UM4684
Description
0.5Ω, Low-Voltage, Dual SPDT Analog Switch
Status
ACTIVE
Channels
2
Architecture
SPDT
Signal Type
Single
VCC(Min)(V)
1.8
VCC(Max)(V)
5.5
Bandwidth@-3dB (MHz)
20
RON(typ) (Ω)
0.5
CON(typ) (pF)
406
Typical Application
-
Operating Temperature Range(℃)
-40 to 85
Package
MSOP10, CSP10 2.0x1.5
The UM4684 is a sub 1Ω (0.5Ω at 2.7V) dual SPDT analog switch designed for low voltage applications.
The UM4684 has on-resistance matching(less than 0.05Ω at 2.7V) and flatness (less than 0.2Ω at 2.7V) that are guaranteed over the entire voltage range. Additionally, low logic thresholds make the UM4684 an ideal interface to low voltage DSP control signals.
The UM4684 has fast switching speed with break-before-make guaranteed. In the ON condition, all switching elements conduct equally in both directions. OFF-isolation and crosstalk is -69dB at 100kHz.
The UM4684 is built on high-density low voltage CMOS process, and contains the additional benefit of 2000V ESD protection.
As a committed partner to the community and the environment, Union manufactures this product with lead (Pb)-free device terminations.
- CSP10 & MSOP10 Packages
- ESD Protection >2000V
- +1.8V to +5.5V Single Supply Operation
- NC Switch RON: 0.5Ω (+2.7V Supply)
- NO Switch RON: 0.6Ω (+2.7V Supply)
- RON Match between Channels: 0.05Ω Max (+2.7V Supply)
- RON Flatness over Signal Range: 0.2Ω Max (+2.7V Supply)
- 1.8V Logic Compatibility
- Low Crosstalk: -69dB (100kHz)
- High Off-Isolation: -69dB (100kHz)
- Cellular Phones
- Speaker Headset Switching
- Audio and Video Signal Routing
- PCMCIA Cards
- Battery Operated Systems
- Relay Replacement
- Power Routing
- Communication Circuits

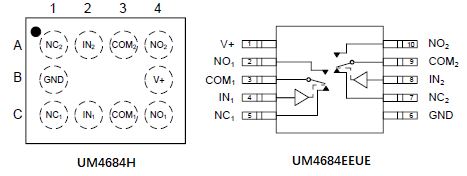

| Part Number | Packaging Type | Marking Code | Shipping Qty |
|---|---|---|---|
| UM4684H | CSP10 2.0×1.5 | A | 3000pcs/7Inch Tape & Reel |
| UM4684EEUE | MSOP10 | UM4684EEUE | 4000pcs/13Inch Tape & Reel |
