Part Number
UM1431
Description
30V Input, 100mA Current Limit, Micropower Linear Regulator
Status
ACTIVE
Output Options
Fixed
Iout(Max) (mA)
100
Vin(Min) (V)
3.6
Vin(Max) (V)
30
Vout (Min) (V)
2
Vout (Max) (V)
6
Fixed output options (V)
2.0 to 6.0 with 0.1 Interval
Iq (uA)
5.8
Vdropout (mV)
250
PSRR@1kHz (dB)
45
Enable Control
No
Auto-Discharge
No
Operating Temperature Range (℃)
-40 to 85
Package
SOT23-3, SOT23-5, SOT89-3
The UM1431 series are high input voltage low quiescent current regulators implemented in CMOS technology. It can accept input voltage as high as 30V with 100mA output current limit. The output voltages are selectable in 100mV steps within a range of 2.0V to 6.0V. 100mA output current limiting is built in to provide protection for the regulators against fault conditions. CMOS technology ensures low voltage drop and low quiescent current.
The UM1431 is available in SOT23-3, SOT23-5 and SOT89-3 packages
- Input Voltage Range: 3.6V to 30V
- 100mA Guaranteed Output Current
- ±3% Voltage Accuracy at 30mA
- Low Dropout Voltage: 250mV (Typical) at 30mA
- Low Quiescent Current: 5.8μA@VIN=30V (Typical)
- Available Fixed Output Voltage from 2.0V to 6.0V with 0.1V Step
- Output Current Limit
- Low Profile SOT23-3, SOT23-5 and SOT89-3 Packages
- Communication Equipment
- Audio/Video Equipment
- Industrial Control
- Infotainment

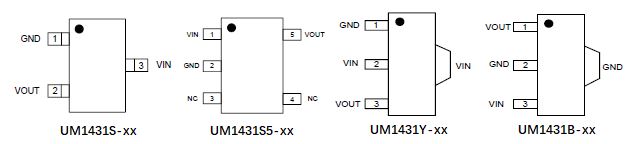

| Part Number | Packaging Type | Marking Code | Shipping Qty |
|---|---|---|---|
| UM1431S-xx | SOT23-3 | 4XX | 3000pcs/7Inch Tape & Reel |
| UM1431S5-xx | SOT23-5 | 4XX | 3000pcs/7Inch Tape & Reel |
| UM1431Y-xx | SOT89-3 | 4XX | 1000pcs/7Inch Tape & Reel |
| UM1431B-xx | SOT89-3 | 4XX | 1000pcs/7Inch Tape & Reel |
