Part Number
UM1430
Description
18V Input, 100mA Current Limited, Micropower Linear Regulator
Status
ACTIVE
Output Options
Fixed
Iout(Max) (mA)
100
Vin(Min) (V)
3.6
Vin(Max) (V)
18
Vout (Min) (V)
2
Vout (Max) (V)
6
Fixed output options (V)
2.0 to 6.0 with 0.1 Interval
Iq (uA)
4.8
Vdropout (mV)
250
PSRR@1kHz (dB)
45
Enable Control
No
Auto-Discharge
No
Operating Temperature Range (℃)
-40 to 85
Package
SOT23-3, SOT23-5, SOT89-3
The UM1430 series are high input voltage low quiescent current regulators implemented in CMOS technology. It can accept input voltage as high as 18V with 100mA output current limit. The output voltages are selectable in 100mV step within a range of 2.0V to 6.0V. 100mA output current limiting is built in to provide protection for the regulators against fault conditions. CMOS technology ensures low voltage drop and low quiescent current.
The UM1430 is available in SOT23-3, SOT23-5 and SOT89-3 packages.
- Input Voltage Range: 3.6V to 18V
- 30mA Guaranteed Output Current
- ±3% Voltage Accuracy at 30mA
- Low Dropout Voltage: 250mV (Typical) at 30mA
- Low Quiescent Current: 4.8μA@VIN=18V (Typical)
- Available Fixed Output Voltage from 2.0V to 6.0V with 0.1V Step
- Output Current Limit
- Low Profile SOT23-3, SOT23-5 and SOT89-3 Packages
- Communication Equipment
- Audio/Video Equipment

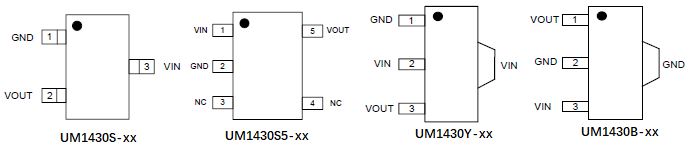

| Part Number | Packaging Type | Marking Code | Shipping Qty |
|---|---|---|---|
| UM1430S-xx | SOT23-3 | 5XX | 3000pcs/7Inch Tape & Reel |
| UM1430S5-xx | SOT23-5 | 5XX | 3000pcs/7Inch Tape & Reel |
| UM1430Y-xx | SOT89-3 | 4XX | 1000pcs/7Inch Tape & Reel |
| UM1430B-xx | SOT89-3 | 4XX | 1000pcs/7Inch Tape & Reel |
