ACTIVE
Part Number
UM1560
Description
Ultra Low Quiescent Current Linear Regulator with Enable
Status
ACTIVE
Output Options
Fixed
Iout(Max) (mA)
300
Vin(Min) (V)
1.8
Vin(Max) (V)
8
Vout (Min) (V)
1.2
Vout (Max) (V)
5
Fixed output options (V)
1.2 to 5.0 with 0.1 Interval
Iq (uA)
2.5
Vdropout (mV)
250
PSRR@1kHz (dB)
42
Enable Control
Yes
Auto-Discharge
No
Operating Temperature Range (℃)
-40 to 85
Package
SOT23-5, SOT343, DFN4 1.0x1.0, DFN6 2.0x2.0
The 1560 series is a set of high input voltage low quiescent current regulator implemented in CMOS technology. They can deliver 300mA output current and allow an input voltage as high as 8V. They are available with several fixed output voltages ranging from 1.2V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.

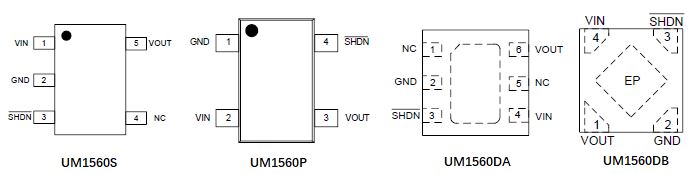

The UM1560 is available in SOT23-5, SOT343, DFN6 2.0×2.0 and DFN4 1.0×1.0 packages.
- Input Voltage Range: 1.8V to 8V
- 300mA Guaranteed Output Current
- Low Dropout Voltage: 250mV (Typical) at 200mA
- Low Quiescent Current: 2.5礎@VIN=8V (Typical)
- Low Noise: 115礦RMS (10Hz to 100kHz)
- Available Fixed Output Voltage from 1.2V to 5.0V with 0.1V Step
- With Shutdown Control
- Output Current Limit
- Low Profile SOT23-5, SOT343, DFN6 2.0×2.0 and DFN4 1.0×1.0 Packages
- Communication Equipments
- Audio/Video Equipments
- Portable Games
- Portable AV Equipments
- Battery-Powered Equipments
| Part Number | Packaging Type | Marking Code | Shipping Qty |
|---|---|---|---|
| UM1560S-xx | SOT23-5 | 6XX | 3000pcs/7Inch Tape & Reel |
| UM1560P-xx | SOT343 | UXX | 3000pcs/7Inch Tape & Reel |
| UM1560DA-xx | DFN6 2.0×2.0 | AXX | 3000pcs/7Inch Tape & Reel |
| UM1560DB-xx | DFN4 1.0×1.0 | XX | 10000pcs/7Inch Tape & Reel |
