The UM3011 is highly integrated, robust and advanced multiprotocol transceiver supporting RS-232, RS-422 and RS-485 serial standards. The device offers one transmitter and one receiver in RS-232 mode. The device also integrates one transmitter and one receiver to support half and full duplex RS-485 communication. MODE selection pins enable shared bus and logic pins for the protocols to share a common single connector. Integrated termination resistance for RS-485 bus pins and for RS-232 receiver inputs need no external components to realize a fully-functional and switchable communication port.

The UM3011 operates up to 20Mbps in RS-485/RS-422 modes, and up to 1Mbps in RS-232 mode. What’s more, based on the SLR pin setting, the UM3011 can be limited to 0.5Mbps low-speed RS-485 mode and 0.25Mbps low-speed RS-232 mode.

The device features integrated robust IEC ESD protection. What’s more, the RS-485 receiver fail-safe feature drives logic high on received logic output when the bus inputs are open or shorted together or when the bus is idle.

The UM3011 needs 3.0V to 5.5V supply that fully powers four external charge pump capacitors for RS-232 and the driver/receiver for both RS-232 and RS-485. The device is also configured with 1.65V to 5.5V logic supply for logic data and control signals. Additionally, the device also features nSHDN pin to achieve extremely low current consumption when the system disables the device.

- Meets or exceeds the requirements of the TIA/EIA-485A standards

- 3V to 5.5V supply voltage

- 1.65V to 5.5V supply voltage for logic pins

- RS-485 differential output exceeds 2.1V for PROFIBUS compatibility with 5V supply

- 1 transmitter, 1 receiver for RS-232 port

- 1 transmitter, 1 receiver for RS-485 port

- Integrated switchable 120Ω termination resistor for half and full duplex RS-485 mode

- Integrated charge-pump for RS-232

- Large output swing (typical ±8.5V) for RS-232 mode with VCC = 5V supply

- Open, short, and idle bus failsafe for RS-485 receiver

- Selectable Data Rates with SLR Pin:

-- RS-232 mode: 250kbps and 1Mbps

-- RS-485 half-duplex and full-duplex mode: 500kbps and 20Mbps

- Glitch-free power-up/down for hot plug-in capability

- Bus short-circuit protection, thermal Shutdown

- Extended ambient temperature range: -40°C to 125°C

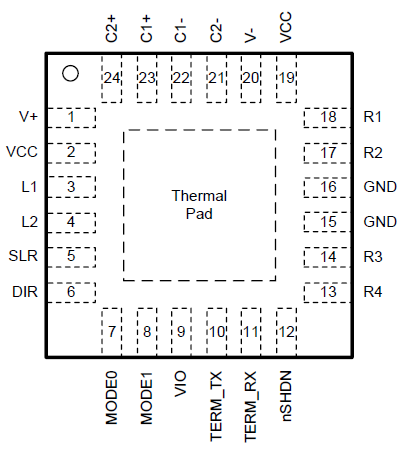

- Space-saving QFN24 4.0×4.0 package

- Industrial

- Factory automation and control

- HAVC systems

- Building automation

- Point-of-sale terminals

- Grid infrastructure
