UM7222
ACTIVE

Key Specifications
Product Description
Features
Applications
Pin Configurations
Ordering Information
Key Specifications
  • Part Number

    UM7222

  • Description

    High-Speed USB2.0 (480 Mbps) DPDT Switch

  • Status

    ACTIVE

  • Channels

    2

  • Architecture

    DPDT

  • Signal Type

    Differential

  • VCC(Min)(V)

    2.7

  • VCC(Max)(V)

    5.5

  • Bandwidth@-3dB (MHz)

    550

  • RON(typ) (Ω)

    9

  • CON(typ) (pF)

    7

  • Typical Application

    USB2.0

  • Operating Temperature Range(℃)

    -40 to 85

  • Package

    MSOP10, QFN10 1.8x1.4

  • Product Description

    The UM7222MA/UM7222 is a dual port high-speed, low-power data switch optimized for USB 2.0 signal switching. The UM7222MA/UM7222 switch is configured in double-pole/ double-throw DPDT. It handles bidirectional signal flow, achieving a 550 MHz -3dB bandwidth, and a port to port crosstalk and isolation at -50dB at 250MHz.

    The UM7222MA/UM7222 operates from a single +2.7V to +5.5V supply, with current consumption less than 1 microampere.

    The UM7222MA/UM7222 features wide bandwidth and low bit-to-bit skew allow it to pass high-speed differential signal with good signal integrity, offers little or no attenuation of the high-speed signals at the outputs. Its high channel-to-channel crosstalk rejection results in minimal noise interface. Its bandwidth is wide enough to pass high-speed USB 2.0 differential signals (480Mbps). The control logic threshold is guaranteed to be compatible with 1.8V logic.

    The UM7222MA is available in Pb-free MSOP10 package, while the UM7222 is available in Pb-free QFN10 package (1.4mm×1.8mm×0.55mm). They are ideal for portable high speed mix signal switching application.

    Features

    - Ron is Typically 6.5Ω at VCC=3.0V

    - Low Bit-to-Bit Skew: Typically 50ps

    - OVT on D+ and D- up to 5.5V

    - Power OFF Protection: When VCC=0V, D+ and D- can Tolerate up to 5.5V

    - Low Crosstalk: -50dB (250MHz)

    - Low Current Consumption: 1礎

    - Near-Zero Propagation Delay: 250ps

    - Channel On-Capacitance: 6.5pF(Typical)

    - VCC Operating Range: +2.7V to +5.5V

    - 550MHz Bandwidth (or Data Frequency)

    - Lead (Pb)-Free MSOP10 and QFN10 Packages

    - ESD Rating: ±4kV I/O to GND

    Applications

    - Differential Signal Data Routing

    - USB2.0 Signal Routing

    - Cell Phone, PDA, Digital Camera and Notebook

    - LCD Monitor, TV and Set-Top Box

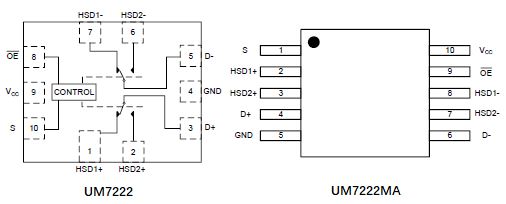

    Pin Configurations
    Ordering Information
    Part NumberPackaging TypeMarking CodeShipping Qty
    UM7222QFN10 1.8×1.4AC3000pcs/7Inch Tape & Reel
    UM7222MAMSOP10UM7222MA4000pcs/13Inch Tape & Reel
