Key Specifications
Part Number Description Status SubFamily Transient Standards L (nH) R (Ohm) C (pF), VR=2#5V Attenuation @ 800 MHz (db) Attenuation @ 2#5 GHz (db) VRWM MAX (V) IR MAX at VRWM uA at 25°C VBR MIN (V) CTOT MAX (pF) L-G Lines: Uni-directional Protection Lines: Bi-directional Protection Pin/Package EV Kit Available?
UM8511 8-Line LC EMI Filter with Integrated ESD Protection ACTIVE CLC Filter IEC 61000-4-2 17 10 12 -22 -45 5 0.1 6 24 8 0 16/DFN 3.3×1.3 Y
View All>>

Product Description

The UM8511 is a (L-C) low pass filter array with integrated TVS diodes. It is designed to suppress unwanted EMI signals and provide electrostatic discharge (ESD) protection in portable electronic equipment. This device utilizes solid-state silicon-avalanche technology for superior clamp­ing performance and DC electrical characteristics. It has been optimized for protection of signal lines in cellular phones and other portable electronics.
The device consists of identical circuits comprised of TVS diodes for ESD protection, and a C-L-C network for EMI filtering. A typical inductor value of 17nH and a capacitor value of 12pF are used to achieve 19dB minimum attenuation from 800MHz to 2.7GHz. The TVS diodes provide effective suppression of ESD voltages in excess of ±15kV (air discharge) and ±8kV (contact discharge) per IEC 61000-4-2, level 4.
The UM8511 is in a RoHS compli­ant DFN16 3.3×1.3 package. The leads are finished with lead-free. The small pack­age makes it ideal for use in portable electronics such as cell phones, digital still cameras, and PDAs.

Features

- Bidirectional EMI Filter with Integrated TVS for ESD Protection
- ESD Protection to IEC 61000-4-2 (ESD) Level 4, ±15kV (Air), ±8kV (Contact)
- Filter Performance: 19dB Minimum Attenuation from 800MHz to 2.7GHz
- TVS Working Voltage: 5V
- Inductor: 17nH (Typical)
- Capacitors: 12pF (Typical at VR=2.5V)
- Protection and Filtering for Multi Lines
  UM8511: Eight Lines

Applications

- Signal Lines Protection
- Cell Phone CCD Camera Lines
- Clamshell Cell Phones

Pin Configurations

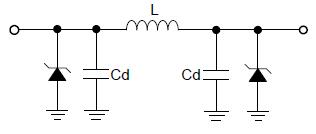

          UM8511 Top View                                                                                  Device Schematic (8X)

Electrical Characteristics (TJ=25°C, unless otherwise noted)

Parameter
Symbol
Conditions
Min
Typ
Max
Unit
TVS Reverse Stand-Off Voltage
VRWM



5
V
TVS Reverse Breakdown Voltage
VBR
 IT=1mA
6
8
10
V
TVS Reverse Leakage Current
IR
 VRWM=3.3V


0.1
μA
DC Resistance
Rcc


10

Ω
Filter Cut-Off Frequency
fc
Zsource=Zload=50Ω

250

MHZ
Inductance
L


17

nH
Capacitance
Cd
VR=2.5V, f=1MHz

12

pF
Total Capacitance
Ctotal
Input to GND,
Each Line
VR=2.5V, f=1MHz

19
24

29
pF
Stop Band Attenuation

800MHz to 2.7GHz

19

dB

Ordering Information

Part Number
Working Voltage
Packaging Type
Channel
Marking Code
Shipping Qty
UM8511
5.0V
DFN16 3.3×1.3
8
8511
3000pcs/7Inch
Tape & Reel
